Set of 4 Nd:YAG Resonant Cavity Mirrors: HR + R54% + R80% + R90% Φ12mm
Please note: if this product appears on the eBay page with the status
“ended”, please contact us via email or eBay messaging and the listing
will be reactivated specifically for your purchase.
Product Description
Set of 4 Nd:YAG Resonant Cavity Mirrors: HR + OC1 - R54% + OC2 - R80% + OC3 - R90%
1x HR (High Reflector): R > 99.5% @ 1064nm3x OC (Output Couplers) with the next reflectivities:

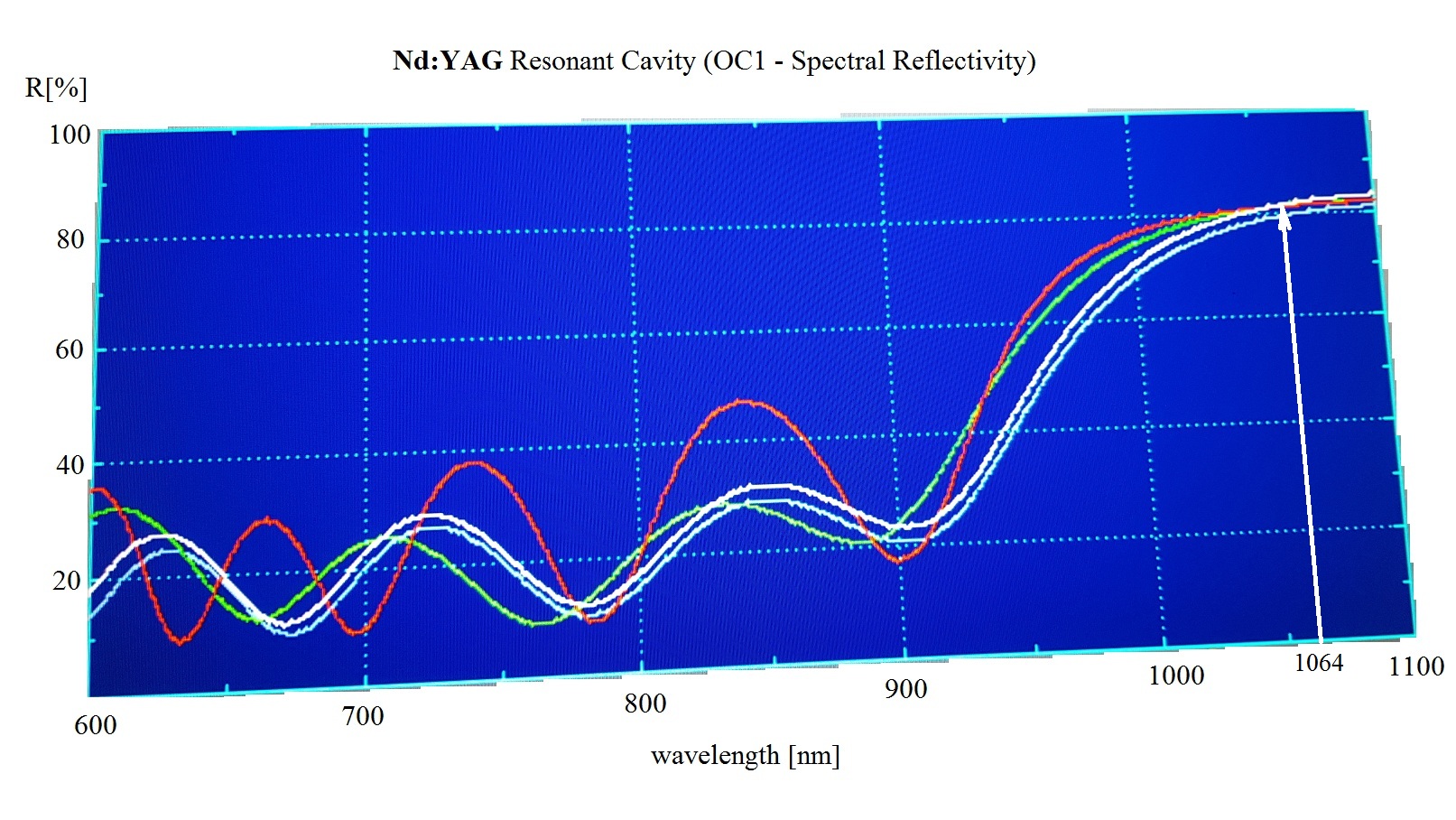

OC1 (R1 ~ 54% @ 1064nm);
OC2 (R2 ~ 80% @ 1064nm);

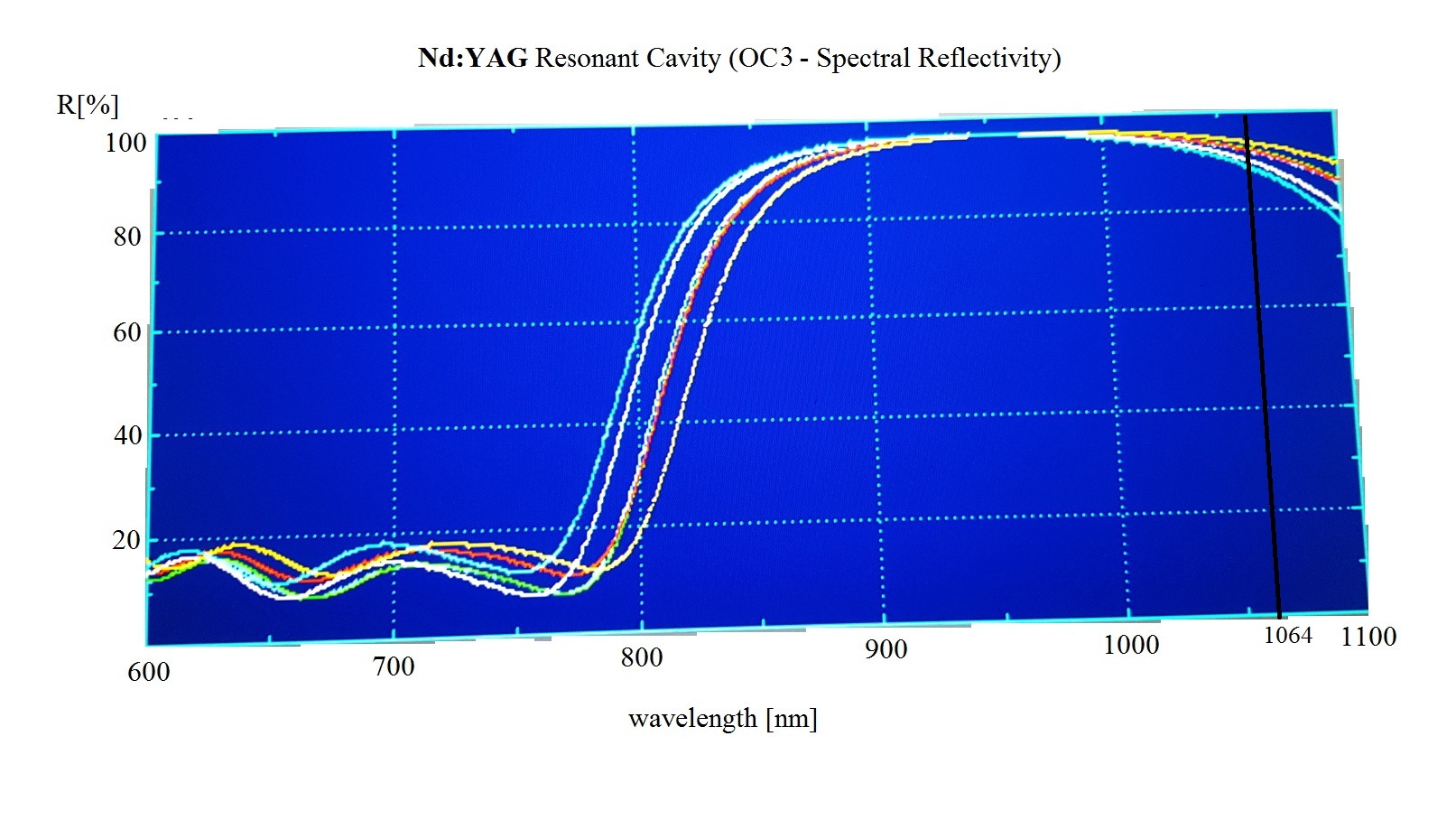

OC3 (R3 ~ 90% @ 1064nm)
These optics are suitable for experimenting with different output coupling efficiencies in Nd:YAG solid-state laser cavities and similar.
For more unique optical pieces, simply browse the general catalog
Feel free to contact us for custom optical coatings.
Technical Specifications
| Wavelength | 1064 nm |
| Diameter | 12 mm |
| Substrate | BK7 |
| OC's back surface | AR coated |
