Optical window designed for Nd:YAG laser applications.
This optical window is anti-reflection (AR) coated on both faces for the 1000-1100 nm wavelength range, ensuring maximum transmission of over 99% for Nd:YAG laser radiation at 1064 nm.

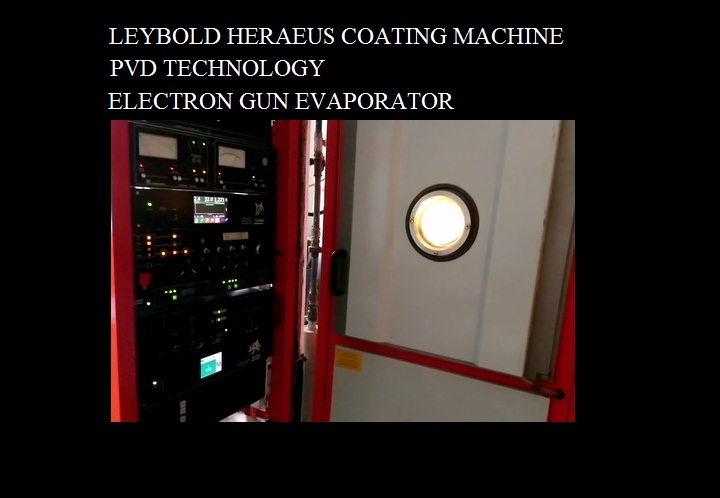

Manufactured using PVD (Physical Vapor Deposition) technology, this window minimizes reflection losses and prevents unwanted back reflections that could potentially disrupt optical experiments.
For custom dimensions, specific wavelength ranges, or specialized requirements, please contact us - we offer custom manufacturing solutions tailored to your application needs.
| Product Code: | A-10 |
| Diameter: | 30 mm |
| Wavelength Range: | 1000-1100 nm |
| Transmission @1064nm: | > 99.5% |
| Coating: | AR coated on both faces |
| Coating Type: | Dielectric |
| Substrate Material: | BK7 - Schott Optical Glass | Manufacturing Technology: | PVD (Physical Vapor Deposition) |
